LED strips as instrument backlights

The standard illumination for the clock panel on the ZZR is, frankly, rubbish.

In daylight it doesn’t matter, obviously, and when it’s pitch black, it’s fine too, but everywhere in between it’s just rubbish! I can’t read the clocks at all – kind of important if you don’t want a speeding ticket!

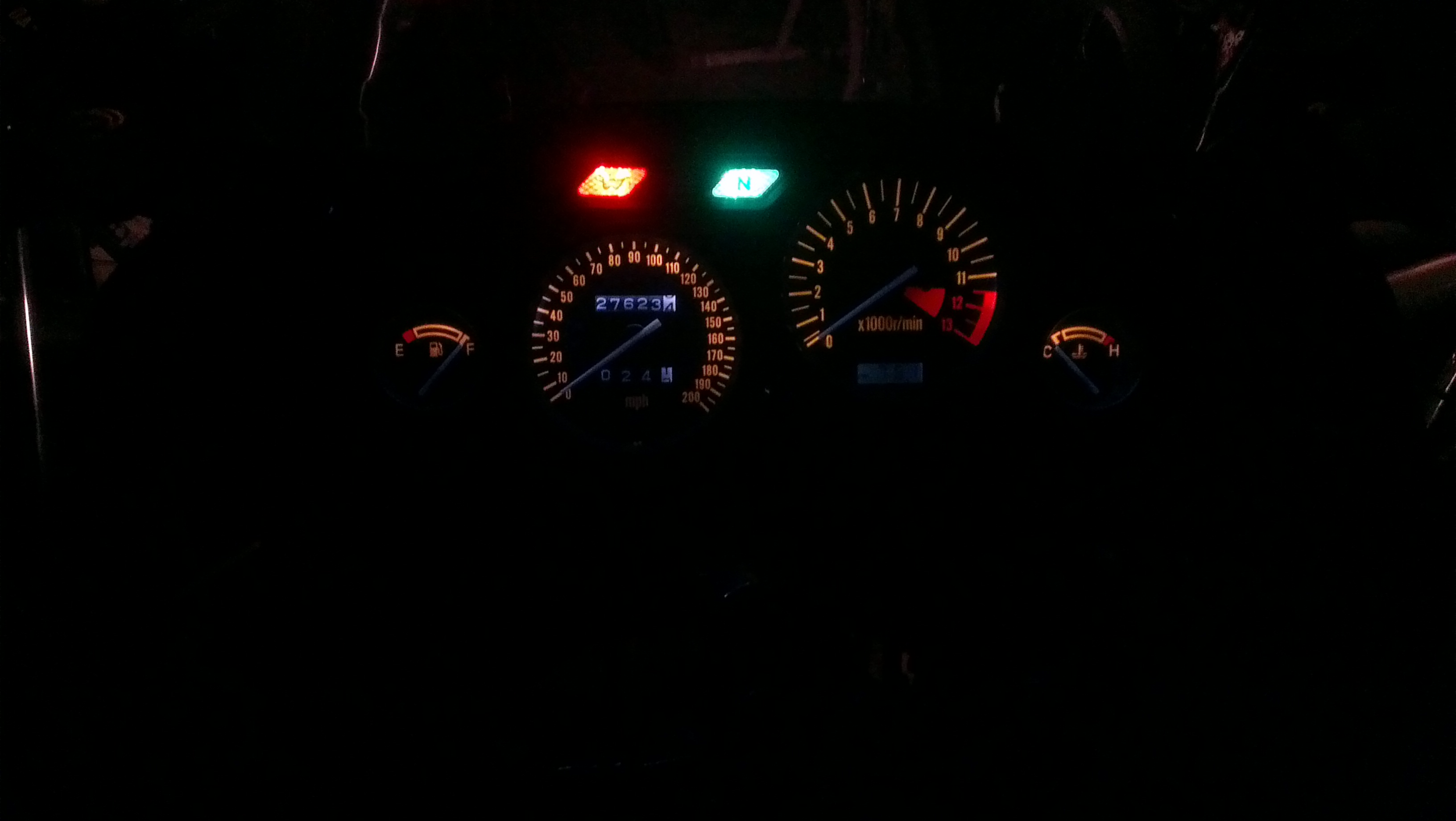

IMAG0486

Here they are again, with the LED’s fitted

IMAG0497

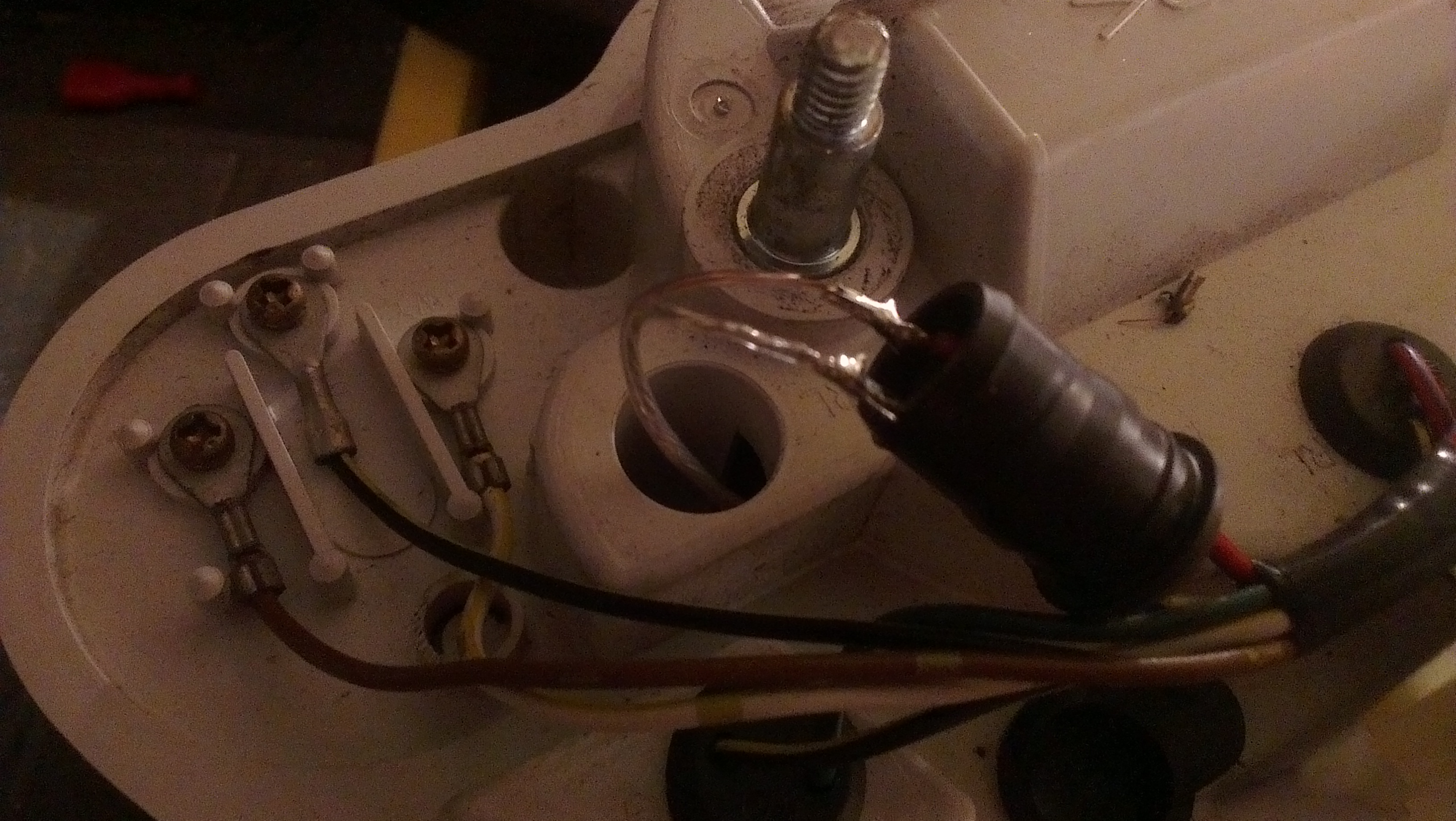

The LED strips came are wired into the bulb power supply, and the strips are wrapped around the internals of the instrument panel

IMAG0494

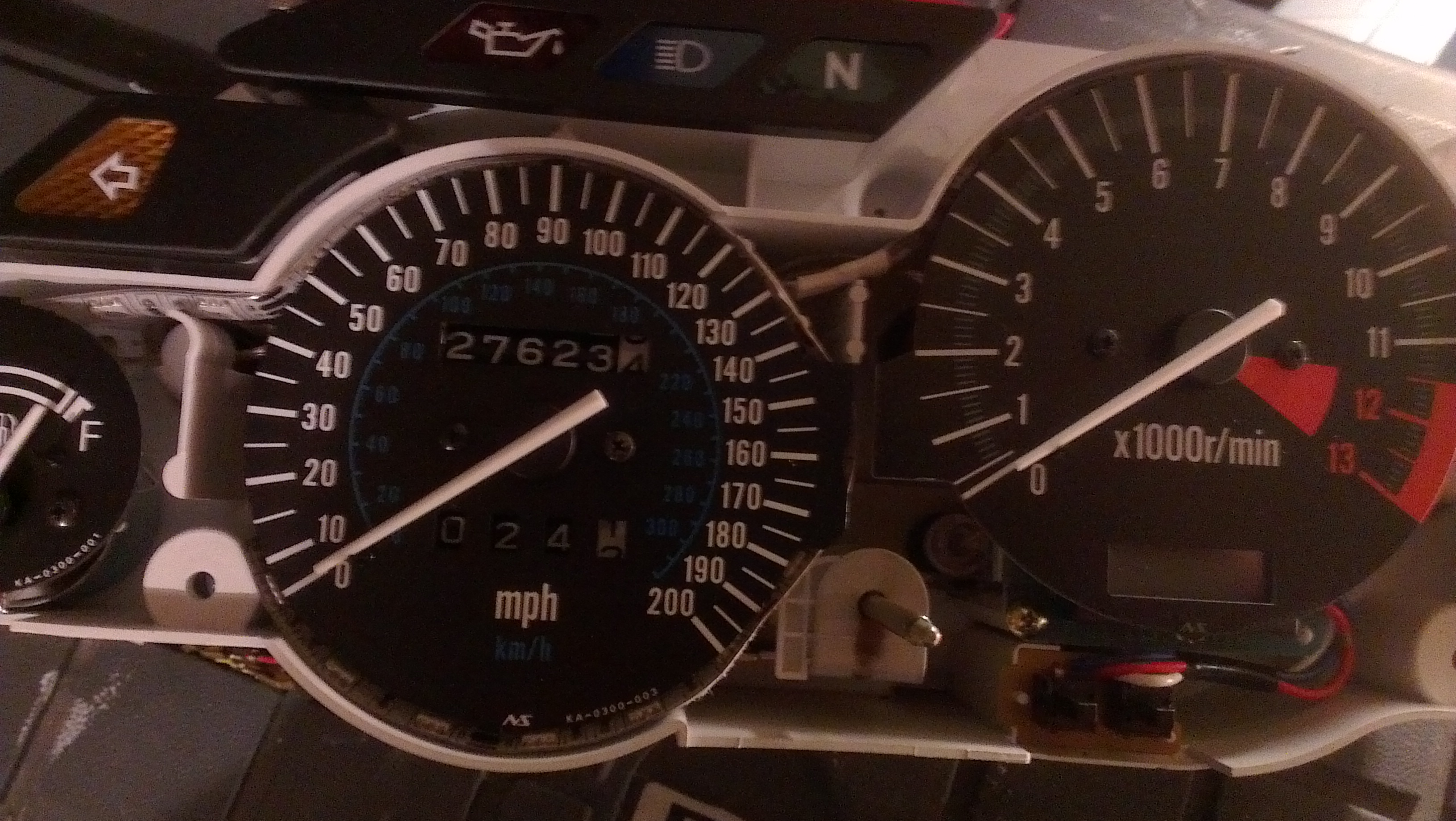

IMAG0495

Bit of a faff to do, but the difference speaks for itself!

4 thoughts on “LED strips as instrument backlights

  1. to save the hassle mate i got same replacing the bulbs with LED bulbs
    done it for customer on fjr1300 and you can buy all colours does same job just less hassle + quicker

  2. Pingback: A year of motorcycling | Mike's Blog

  3. Hello Mike. I have a 1995 ZZR600 which is being renovated and while searching for LED instrument lights I found your blog. What you did is exactly what I want to do, so would you be so kind as to tell me the size of the LED strip you used. Any help would be most appreciated. Thanks. Colin

    • Hi Colin, to the best of my recollection they were a fairly standard 12v led strip that you could cut back to size. Unfortunately I no longer have a record of them. Sorry I can’t be of more help!
